300kW 140 Series Marine Engine

140 cylinder series engine is a kind of high-speed engine with the character of high pressure, low energy consumption, high reliability, long life , the technical indicators reached the international advanced level, leading the domestic level of 5-10 years, Jichai has 100% intellectual property rights.

Contact Now E-Mail Telephone WhatsApp

Product Details

The engine adopts the modular design concept, adopts the "high pressure common rail", "high pressure closed respiratory system" and other international advanced internal combustion engine technology, the product meets the low emission standards, and is widely used in Marine engineering.

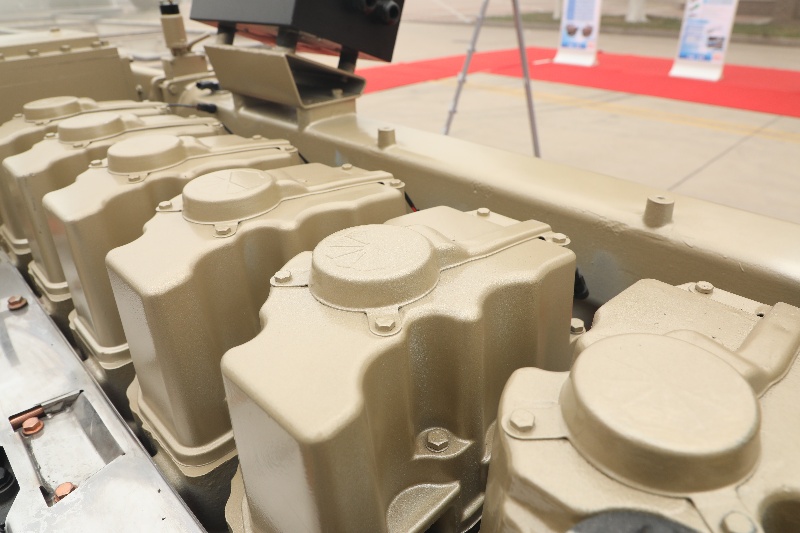

300kW 140 Series Marine Engine.jpg

Engine Series	140 marine engine（300-457KW)
Engine Model	JC15C-3 marine engine
Type	Four stroke, supercharged intercooling, water cooling, high pressure common rail ECU electronic control jet
Cylinders & Arrangement	6 cylinders, in-line
Cylinder bore,mm	140
Piston Bore,mm	165
Rated Power,kW/hp	300/408
RPM,r/min	1800
Total Piston Displacement ,L	15.2
Fuel oil consumption rate,g/kW.h	≤189
Lub. oil consumption rated g/kW.h	≤0.35
Dimension mm	1935×1160×1600
Weight kg	1850

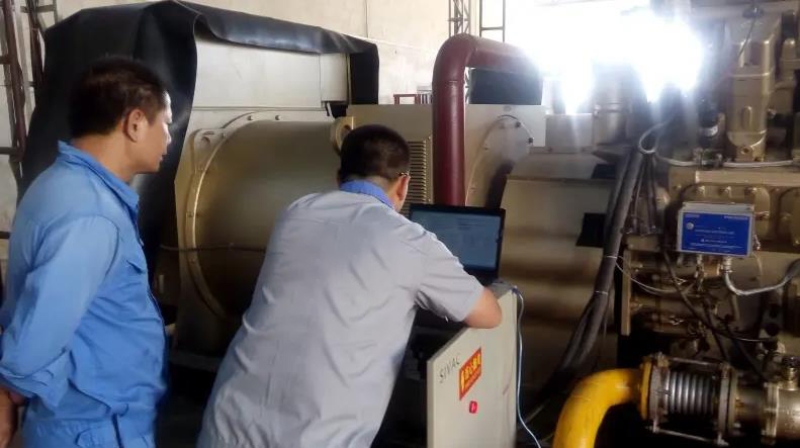

After-sales service

1. Online consulting - online engineers to provide consulting, according to customer needs to develop product solutions;

2. Contract signing -- standard export contract template signing, to meet the requirements of global customers;

3. After-sales service -- global service engineers, on-site installation guidance.

4. 24-hour global technical support.

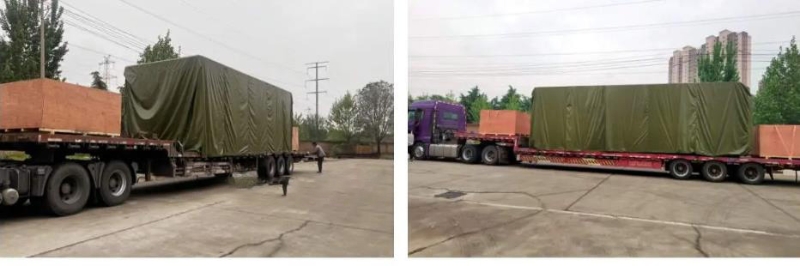

Packaging and delivery

1. Packaging - The use of international general fumigation-free wooden cases, safe and non-destructive packaging, to meet various protection requirements.

2. Size - generally adopts international standard container size; Can also be customized according to customer requirements.

3. Transportation - adapt to a variety of modes of transport by sea, land and air, choose the most suitable means of transport according to customer requirements, and ensure that the goods reach the customer's use place safely.

300kW 140 Series Marine Engine.jpg
