Auxiliary Equipment Of Engine Power Station

Power transmission and distribution systems mainly include power transmission, power distribution and electrical protection functions. CNPC Jichai can provide you with high and low voltage switchgear, measurement, protection and control equipment required by the power station. Advanced technology and excellent quality.

Contact Now E-Mail Telephone WhatsApp

Product Details

Control panel for diesel or gas Generator set：

Diesel and gas generator set control panel is designed for supporting generator sets：

◆ Power range： 10 ~ 5000 KW

◆ Detection parameters：Voltage, current, power, frequency etc.

◆ Protection ：Acousto-optic al arm or shutdown protection when the protection setting is reached

◆ Advanced Import Automation Parallel and Grid Module

◆ Provide unit monitoring data remote transmission interface

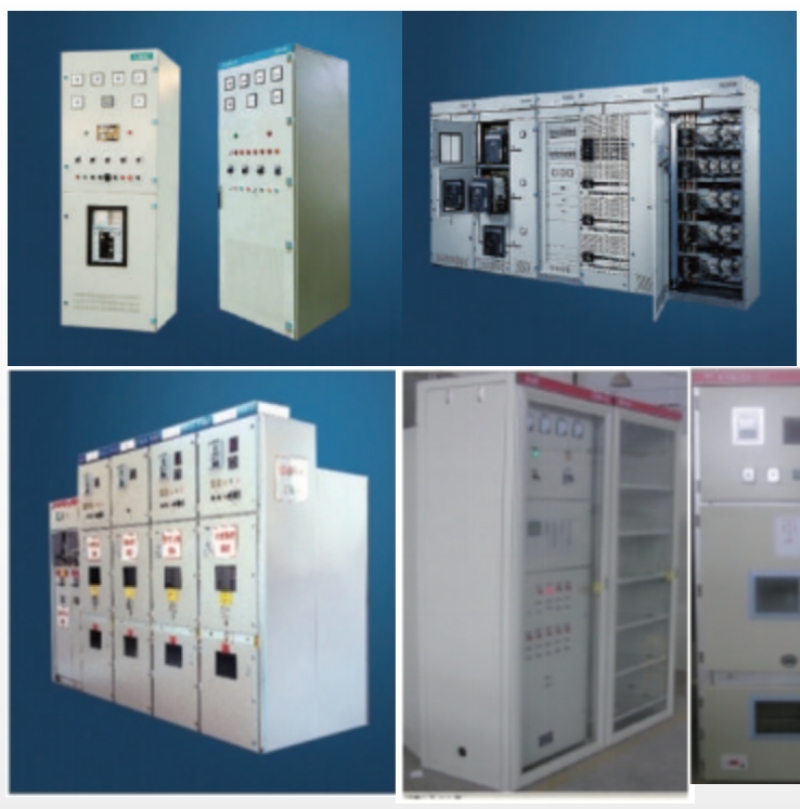

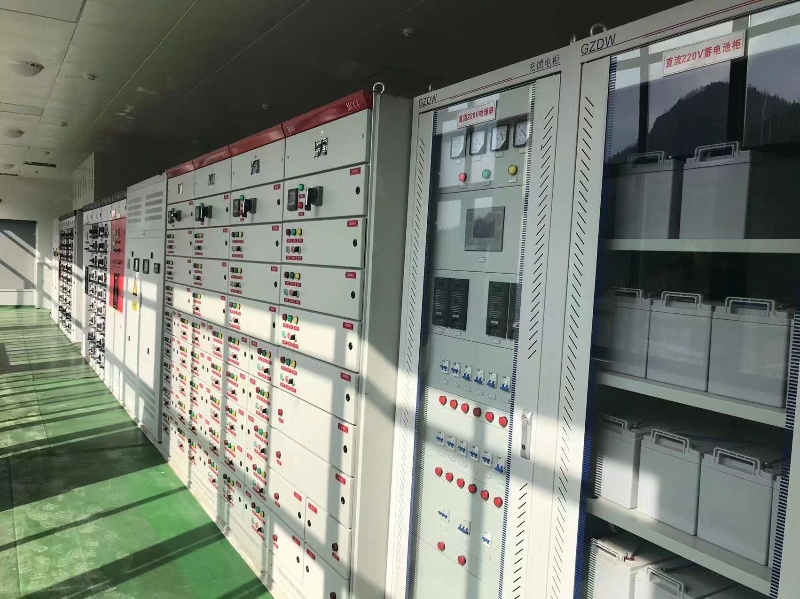

Lowvoltage switch gear cabinet;

The low-voltage switchgear is mainly used for the entry/ exit of low-voltage busbars and distribution of power equipment, and is equipped with protection devices, which facilitates the entry and exit lines of the power station generator set busbars, the power distribution of the power station low-voltage self-use electrical systems, and the control and protection of power plant power equipment.

◆ Range：≤ 4000 A

◆ Working voltage：≤ AC 660V , frequency： 50Hz / 60 Hz

◆ Standard module ，Flexible combination

◆ Motor centralized control 、Reactive power compensation

◆ According to user demand, cabinets such as MNS, GCS,

GCK, GGD and 8PT can be provided.
