500kW Biogas Generator Set

500kW biogas generator set is the advanced product in our product line. After years of painstaking research, this product incorporates the rich and profitable history of 12V190 gasoline engine research. The automation capabilities of the unit have been significantly enhanced.

Contact Now E-Mail Telephone WhatsApp

Product Details

Product description

Biogas power generation technology science is a new type of power comprehensive utilization technology know-how that integrates environmental safety and energy saving. It can not only drive the biogas generating set to generate electricity, but also completely utilize the waste heat of the generating set to produce biogas.

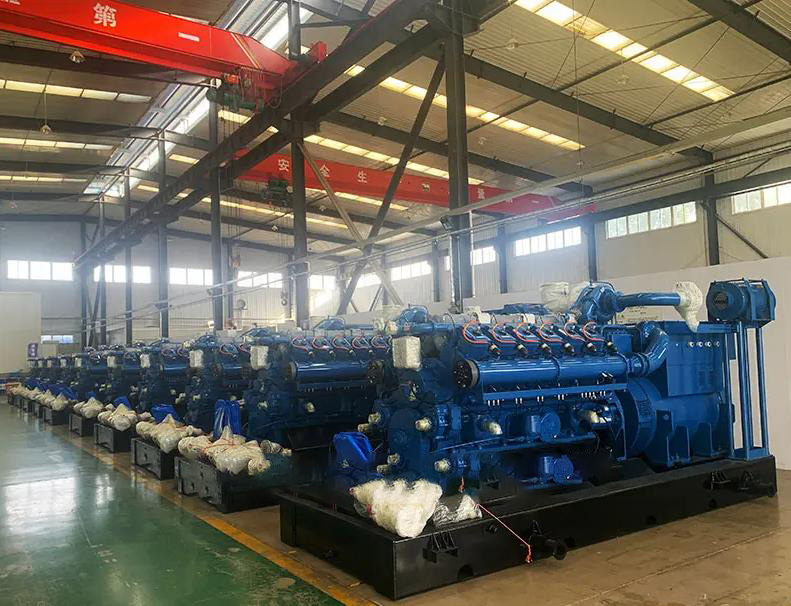

500kW Biogas Generator Set

The 500kW biogas generator is uniquely powered by a 12V190ZL gas engine with the following first-class features and functions:

A) The output voltage can be selected from 400V, 6300V and 10500V, which reduces the initial investment and operating costs.

B) The large bore of 190 mm ensures its uninterrupted regular power delivery.

C) The medium speed of 1000rpm guarantees the service life of the supplier.

D) Natural suction ensures the safety of CBM transportation.

E) Easy maintenance and low noise.

500kW Biogas Generator Set

Main specifications of gas generator set

Model	500GFM	Gas Engine Model	12V190ZL
Rated power	500kW	Alternator	synchronous brushless generator
Rated voltage	400 V	Insulation class	F
Rated speed	1000rpm	Voltage regulation	Automatic
Rated frequency	50Hz	Class of protection	IP23
Rated current	902A	Cooling method	Water cooling with radiator and fan
Power factor	0.8 Lagging	Dimension (mm)	5750×2650×2500mm
Control mode	Electric control	Net Weight (kg)	14500 Kg

Main electrical performance of the gas generator

Voltage
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
±2.5%	+20%	2 S	1%
Frequency
Stabilized regulation	Instantaneous regulation	Recovery time	Fluctuation
0-5% adjustable	≤±10%	< 7 S	1%

Main specifications of gas engine

Type	M12V190ZL
Number of cylinders	12
Cylinder Arrangement	Vee,60°
Cylinder diameter x stroke	190×210 mm
Total Displacement	71.5 L
Intake Type	Turbocharged and inter-cooled
Rated Power,kW	750
Rated Speed,r/min	1000
Biogas input pressure,kPa	5-10
Exhaust Temperature before turbocharger,ºC	≤650

Safety and protection device of the generator

Output voltage too low/too high alarm and stop	Single phase connection trouble alarm and stop
Frequency too high/too low alarm and stop	Cooling water temp high alarm
Reverse power alarm and break brake	Lubrication oil temp too high alarm
Overload alarm and break brake	Lubrication oil pressure too low alarm and stop
Over speed alarm and stop	Battery voltage too low alarm
Blast prevention of air inlet and crankcase	Gas leaking protection
